DPU2A Handheld General Practice Ultrasound Device

DPU2A is Compact, intuitive, and customizable.

  • Dual-probe (curved/linear/phased array) covers abdomen, OB/GYN, vascular, MSK, cardiology & more.
  • Speckle reduction tech delivers sharp shallow/deep imaging.
  • IPX7 waterproof, easy to disinfect—ideal for point-of-care and daily general practice use, anytime anywhere.

Get A Quote Now

Product Contact Form

DPU2A is compact, ultra-portable, intuitive and customizable. The wireless dual-probe with curved and linear transducers delivers crystal clear images anytime, anywhere.

  • It works seamlessly for general practice, including abdomen, obstetrics, gynecology, vascular, small parts, urology, MSK, cardiology and other evaluations. Contex transducer is ideal for abdominal imaging, obstetric and gynecologic assessments and urological evaluations, linear transducer for vascular, MSK, and more, and phased array for hearts.
  • Powered by speckle reduction technology, it shows you high quality enhanced details. Both shallow and deep scans can be easily performed anywhere anytime with clarity in just one device.
  • DPU2A offers you both ultra-flexibility for point of care and durability for daily handling during general practice. Durable design made possible with IPX7 waterproof feature allows you to easily disinfect.

Specification







Convex



Linear



Phased Array

Frequency: 2.5 / 3.5 / 4.0 / 5.0 / 6.0 / H3.6 / H4.0 / H5.0 / H6.0MHz 5.0 / 7.5 / 9.0 / 10.5 / 12 / H10 / H12MHz 2.5 / 3.5 / 4.0 / 5.0 / 6.0 / H3.6 / H4.0 / iH3.6 / iH4.0MHz
Depth: 40-300 20-150 40-300
Gain: 1-100% 1-100% 1-100%
Dynamic Range: 36db-120db 36db-120db 36db-120db
Focus Number: 1 1 1
Spot Reduction:

On/Of

On/Of On/Of
PW Measurement Range: ±15cm / ±120cm ±5cm / ±100cm ±15cm / ±160cm
CF Measurement Range: ±8cm / ±76cm ±3cm / ±48cm ±6cm / ±62cm
Mode: B / CF / PW / M / PDI / DPDI B / CF / PW / M / PDI / DPDI / Needle Enchancement B / CF / PW / M / PDI / DPDI


TGC:



8 Segments

8 Segments 8 Segments
Battery: 3200mA 3200mA 3200mA


Element Channel:



128 64

128 64 128 64
Connection Terminal: Android / iOS / Windows Android / iOS / Windows Android / iOS / Windows

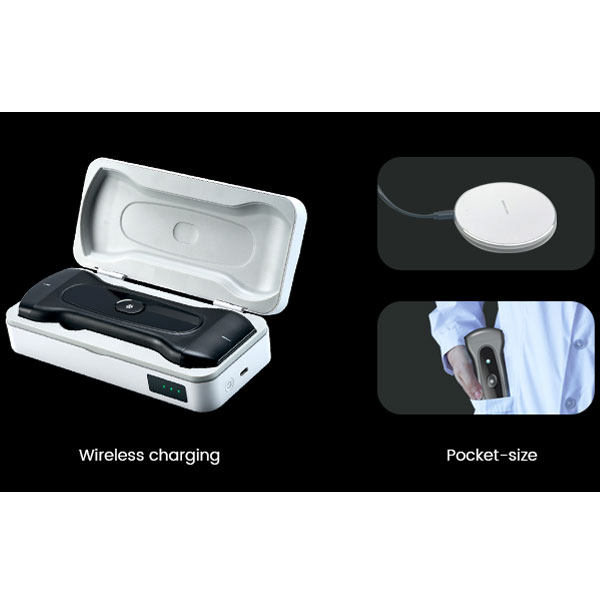

Charging Time: Wireless charging 30 Minutes to 43% 60Minutes to 100% Wireless charging 30 Minutes to 43% 60Minutes to 100% Wireless charging 30 Minutes to 43% 60Minutes to 100%
Weight: 212g 212g 212g
Optional: Wireless charge box Wireless charge box Wireless charge box
