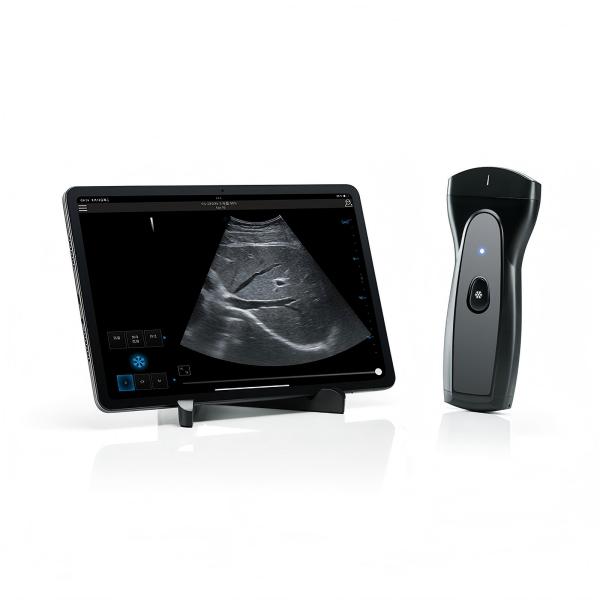

DPU1B Handheld Ultrasound for GYN and OB

DPU1B is designed with portability and user-friendliness at its core.

  • Weight 212g ultra-portable, IPX7 waterproof, with integrated wireless charger.
  • Boasts THI Harmonic Imaging for sharp contrast, 128-element channels (2.5-6.0MHz, 40-300mm depth), and multi-system compatibility (Windows/Android/iOS).
  • Ergonomic design reduces fatigue—ideal for village clinics, primary hospitals, and home visits. Delivers reliable diagnostics anytime, anywhere.

Get A Quote Now

Product Contact Form

DPU1B is designed with portability and user-friendliness at its core. It empowers healthcare professionals across different locations—whether in village clinics, primary hospitals, or during home visits.

  • Excellent ergonomic design. What sets it apart is its ergonomic design, not only ensuring easy handling and reducing hand fatigue during prolonged use, but also optimizes patient comfort, making the diagnostic process more pleasant.

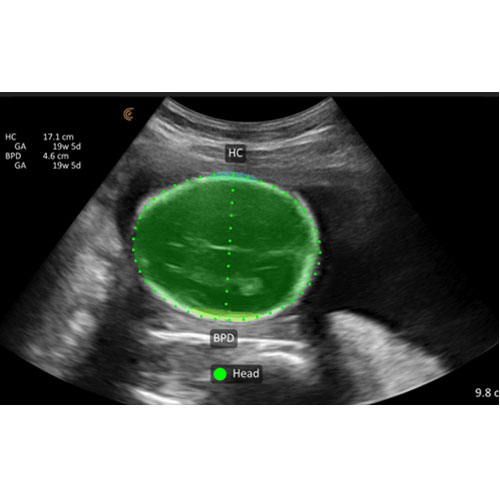

  • Harmonic Imaging Technology for OB and GYN. DPU1B delivers exceptional imaging quality for healthcare professionals anytime, anywhere, thanks to its Harmonic Imaging Technology (THI). This advanced technology leverages the second harmonics generated by the tissue boundary layer, which significantly boosts contrast resolution, helping clinicians identify subtle abnormalities more accurately and support reliable diagnostic decisions.
  • Light Ultrasound Device for OB and GYN. Lightweight design of just 212g. 128 element channels with robust performance. Frequency ranges from 2.5 to H6.0. Scanning depth ranges from 40 to 300 mm. Support Windows, Android, and IOS. Protective case and wireless portable charger in one. IPX7 Waterproof design enables the device to withstand daily handling.
Element Channel:

128 64

Gain: Liner 1-100%
Dynamic Range: Liner 36db-120db
Focus Number: Liner 1
Spot Reduction: Linear On/Off
PW Measurement Range: Linear ±5cm / ±100cm
CF Measurement Range:

Linear ±3cm / ±48cm

Mode: Linear B / CF / PW / M / PDI / DPDI / Needle Enchancement
Frequency: Linear array 5.0 / 7.5 / 9.0 / 10.5 / 12 / H10 / H12MHz
TGC: 8 Segments


Battery:



3200mA

Connection Terminal: Android / iOS / Windows


Charging Time:



Wireless charging 30 Minutes to 43% 60Minutes to 100%

Weight: 212g
